Enable a Dynamic IP Connection to a Wi-Fi Network on the PAX Terminal

Follow these steps to enable a dynamic IP connection to a Wi-Fi network on the PAX terminal.

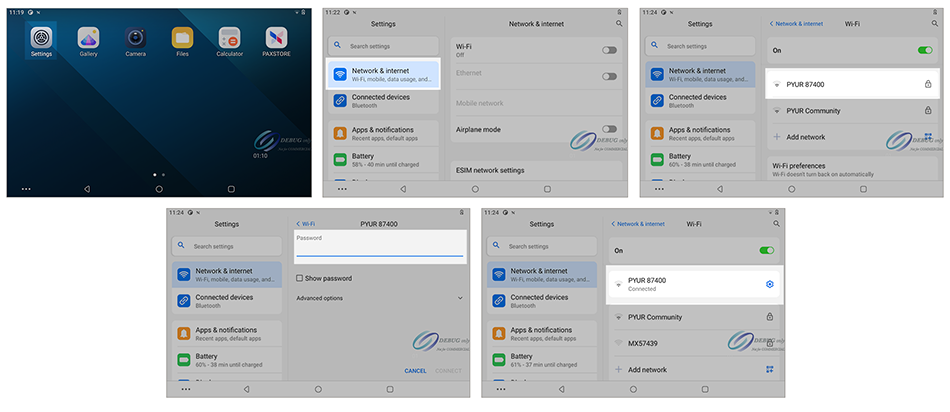

Settings Menu Screens Used to Enable a Dynamic IP Connection on PAX
Terminal — Settings Menu Screens Used to Enable a Dynamic IP Connection on PAX Terminal

On the terminal Home screen, tap the

Settings

icon. Enter your password. The Setting screen appears. If you have not created a custom password, see Create a Password for the PAX Terminal Settings Menu.

Tap

Network & internet

.

In the

Wi-Fi

section, tap the toggle to turn on Wi-Fi.

Choose your Wi-Fi network from the list.

Enter the password for the Wi-Fi network.

Tap

Connect

. The device connects to your Wi-Fi network. A Password screen appears.

Enter the PAX terminal settings password that you entered in step 1. The Wi-Fi settings menu appears, showing that the terminal is connected to your Wi-Fi network.

To exit the screen, tap the back arrow until you reach the Home screen.
